Mini IA Example – A library catalog

vkunge2 Comments

In this post, we build on the menu system shown here:Mini Internal Assessment Example

Download the code here.

Screen Shots

The main Menu
Listing All books
Save Data sub menu

Project organization

Code is split into various C and Header files as shown in the screen capture below:

LibrarySystemExample-Files
LibrarySystemExample-Files

See the Contents of the code files below:

main.c

/*
This program demonstrates how a menu driven
system can be used to trigger functions used
to maintain a simple library catalog.

Data is loaded to and from a binary file.

Date    :   16th November 2019
Author  :   Vedesh Kungebeharry
*/

#include "MenuSystem.h"
#include "CatalogSystem.h"




//function declarations
void initialization();
void exitProgram();


int main()
{

    initialization();
    runMainMenu();
    exitProgram();


    return 0;
}


void initialization()
{
    menuInitialization();
    loadCatalogFromFile();
}

void exitProgram()
{
    saveCatalogToFile();
    exitProgramMenu();
}

CatalogSystem.h

#include <stdbool.h>
#ifndef CATALOGSYSTEM_H_INCLUDED
#define CATALOGSYSTEM_H_INCLUDED
//#include "CatalogSystem.c"

//structures
typedef struct BookStructure
{

    char    Title [50];
    char    Author [50];
    int     Year;
    bool    isOnLoan;
    bool    hasData;
} Book;


//function declarations
void printBookByLocation(int location);
void printBook(Book b);
int  findBook(char searchQuery[]);
void printAllBooks();
int  addBook(Book newBook);

//file function declaration
void saveCatalogToFile();
bool loadCatalogFromFile();

//functions for testing
void setupDummyData();

#endif // CATALOGSYSTEM_H_INCLUDED

CatalogSystem.c

#include <stdio.h>
#include <stdlib.h>
#include <stdbool.h>
#include <string.h>
#include "CatalogSystem.h"

#define maxSize 1000

//constants
const char catalogFilename[50] = "catalog.bin";

//global variables
Book catalog[maxSize];
int count = 0;
FILE *datafilePtr;

//prints a book stored at a given index in the catalog array
void printBookByLocation(int location)
{
    printBook(catalog[location]);
}

void printBook(Book b)
{
    if (b.hasData)
    {
        printf("Title:\t%s\n",b.Title);
        printf("Author:\t%s\n",b.Author);
        printf("Year:\t%d\n",b.Year);
        printf("Loaned? : \t%s\n\n",b.isOnLoan?"Yes":"No");
        //printf("hasData: \t%s\n\n", b.hasData?"Yes":"No");


    }
    else
    {

        printf("\nNo book found at current index location...\n");
    }

}

int addBook(Book newBook)
{
    newBook.hasData=true;
    catalog[count]=newBook;//place book in next
                          //empty location in the array
    count++;//increment count to point to the
            //next empty location.

    return count-1;
}

void printAllBooks()
{
    if(count==0)
    {
        printf("\nNo books in catalog\n");
    }
    else
    {
        for (int i = 0; i<count;i++)
        printBook(catalog[i]);

    }

}

//finds a book by searching for titles that contain a substring of the query.
//this function finds the first positive result only
int findBook(char searchQuery[])
{
    for( int i = 0; i<count; i++)
    {
        char currentBookTitle[50];
        char lowercaseSearchQuery[50];
        strcpy(currentBookTitle,catalog[i].Title);
        strcpy(lowercaseSearchQuery,searchQuery);

        strlwr(currentBookTitle);
        strlwr(lowercaseSearchQuery);

        if(strstr(currentBookTitle, lowercaseSearchQuery))
            return i;

    }

    return -1;
}

void saveCatalogToFile()
{
    datafilePtr = fopen(catalogFilename,"wb");
    if (datafilePtr == NULL)
    {
        //unable to create file
        printf("Error creating file to save data\n");
        exit(1);
    }
    else
    {
        fwrite(&count,sizeof(int),1,datafilePtr) ;
        for(int i = 0; i<count; i++)
        {
           fwrite(&catalog[i],sizeof(Book),1,datafilePtr) ;
        }
    }
    fclose(datafilePtr);

}

bool loadCatalogFromFile()
{
    datafilePtr = fopen(catalogFilename,"rb");
    if (datafilePtr == NULL)
    {
        //unable to create file
        printf("Datafile not found...Catalog empty\n");
        printf("A new save file will be created during exit or manual save....\n");
        return false;
    }
    else
    {
        fread(&count,sizeof(int),1,datafilePtr);
        for(int i = 0; i<count; i++)
        {
           fread(&catalog[i],sizeof(Book),1,datafilePtr) ;
        }
    }
    fclose(datafilePtr);
    return true;

}


void setupDummyData()
{
    Book a=
            {
                .Title = "ATitle",
                .Author = "AAuthor",
                .Year = 2006 ,
                .isOnLoan=false
            };
    Book b=
            {
                .Title = "BTitle",
                .Author = "BAuthor",
                .Year = 2006 ,
                .isOnLoan=false
            };
    Book c=
            {
                .Title = "CTitle",
                .Author = "CAuthor",
                .Year = 2006 ,
                .isOnLoan=false
            };


    addBook(a);
    addBook(b);
    addBook(c);

    saveCatalogToFile();


}

MenuSystem.h

#ifndef MENUSYSTEM_H_INCLUDED
#define MENUSYSTEM_H_INCLUDED

//function declarations
void    menuInitialization();
void    showMainMenu();
void    showSaveLoadMenu();
void    runMainMenu();
void    runSaveLoadMenu();
void    pause();
void    printAllBooksUserInteraction();
void    AddNewBookUserInteraction();
void    exitProgramMenu();
void    SaveLoadUserInteraction();
void    ClearConsoleToColors(int ForgC, int BackC);
void    SetColor(int ForgC);


#endif // MENUSYSTEM_H_INCLUDED

MenuSystem.c

#include <time.h> // for pause()
#include <stdio.h>
#include <stdlib.h>
#include <conio.h>   //for getch()
#include <string.h>
#include <windows.h> //for SetColor()
#include "MenuSystem.h"
#include "CatalogSystem.h"

/*See: https://stackoverflow.com/questions/29574849/how-to-change-text-color-and-console-color-in-codeblocks

system("Color F0");
Letter Represents Background Color while the number represents the text color.

0 = Black

1 = Blue

2 = Green

3 = Aqua

4 = Red

5 = Purple

6 = Yellow

7 = White

8 = Gray

9 = Light Blue

A = Light Green

B = Light Aqua

C = Light Red

D = Light Purple

E = Light Yellow

F = Bright White


*/

//global static  variables
char choice;


/*
*initialize all instance variables and arrays here
*
*/
void menuInitialization()
{
    choice = '_';
}

//displays the main menu and accepts input
void runMainMenu()
{
    int pauseDuration = 2000;
    int sentinel=0;//used to break  out of our menu loop
    while (sentinel>=0)//loop menu here
    {
        showMainMenu();//display menu text

        choice = getch();//get a character from the input buffer

        system("@cls");// clear screen after getting input

        switch (choice)//based on the choice take the desired action
        {
            case '1':   printf("\nList all books\n");
                        printAllBooksUserInteraction();
                        break;

            case '2':   printf("\nAdd a new book...\n");
                        AddNewBookUserInteraction();
                        break;

            case '3':   SaveLoadUserInteraction();
                        break;

            case 'q':   printf("\nYou chose to quit\n");
                        sentinel=-1;//update the sentinel so that looping will cease
                        break;

            case 'Q':   printf("\nYou chose to quit\n");//cease if upper case
                        sentinel=-1;
                        break;
            default:
                        printf("\nYou have entered an option that is not in the menu\n");
                        pause(pauseDuration);
                        break;

        }
        if(sentinel>=0)//if we have continued regular execution , continue looping
        {
            system("@cls");//clear last screen
        }

    }



}

//shows and accepts input for the math sub menu
void runSaveLoadMenu()
{
    int pauseDuration = 2000;
    int sentinel=0;

    while (sentinel>=0)
    {

        showSaveLoadMenu();//show options

        choice = getch();//get a character from the input buffer

        system("@cls");//clear screen

        switch (choice)
        {
            case '1':   printf("\n\tSaving All Changes...\n");
                        saveCatalogToFile();
                        printf("\n\tSaving Complete...\n");
                        system("pause");
                        break;
            case '2':   printf("\n\tLoading last save...\n");
                        if(loadCatalogFromFile())//if a catalog datafile exists....
                            printf("\n\tLoading Complete...\n");
                        system("pause");
                        break;
            case 'r':   //printf("\n\tYou chose to quit\n");
                        sentinel=-1;
                        break;
            case 'R':   //printf("\n\tYou chose to quit\n");
                        sentinel=-1;
                        break;
            default:
                    printf("\n\tYou have entered an option that is not in the menu\n");
                    printf("\n\tReturning to the save menu in %.2lf seconds\n",pauseDuration/1000.00);
                    pause(pauseDuration);
                    break;


        }

        system("@cls");
    }

}

void showMainMenu()
{
    int animationDelayMS=50;
    system("color F1");//set background color to bright white
    SetColor(13);//change foreground color of text
    //Ascii art generated at:http://patorjk.com/software/taag/#p=display&h=1&v=1&f=Doom&t=Main%20Menu%20
    pause(animationDelayMS);printf("___  ___        _         ___  ___                     \n");
    pause(animationDelayMS);printf("|  \\/  |       (_)        |  \\/  |                     \n");
    pause(animationDelayMS);printf("| .  . |  __ _  _  _ __   | .  . |  ___  _ __   _   _  \n");
    pause(animationDelayMS);printf("| |\\/| | / _` || || '_ \\  | |\\/| | / _ \\| '_ \\ | | | | \n");
    pause(animationDelayMS);printf("| |  | || (_| || || | | | | |  | ||  __/| | | || |_| | \n");
    pause(animationDelayMS);printf("\\_|  |_/ \\__,_||_||_| |_| \\_|  |_/ \\___||_| |_| \\__,_| \n");
    SetColor(3);;//change foreground color of text
    pause(animationDelayMS);printf("\n\n1. List all books in Catalog\n");
    pause(animationDelayMS);printf("2. Add a new book\n");
    pause(animationDelayMS);printf("3. Manually Save or Revert to last save\n");
    pause(animationDelayMS);printf("Q. Quit    \n");
    pause(animationDelayMS);printf("\nPlease select an option...");
}

void showSaveLoadMenu()
{
    int animationDelayMS=100;
    SetColor(12);
    pause(animationDelayMS);printf("\n\tSave / Revert to last save...\n");
    pause(animationDelayMS);printf("\t1. Save Changes\n");
    pause(animationDelayMS);printf("\t2. Load Data from Last save\n");
    pause(animationDelayMS);printf("\tR. Return to main menu    \n");
    pause(animationDelayMS);printf("\n\tPlease select an option...");
}

//pauses execution
void pause(int milliseconds)
{
    clock_t now = clock();
    while(clock()< now+milliseconds);

}

void exitProgramMenu()
{
    printf("\nExiting program in 2 seconds...\n");
    pause(2000);

}

void printAllBooksUserInteraction()
{
    printf("\nPrinting all books\n");
    printAllBooks();
    system("Pause");

}

void SaveLoadUserInteraction()
{
 runSaveLoadMenu();
}

void AddNewBookUserInteraction()
{
    char    theTitle[50];
    char    theAuthor[50];
    int     theYear;

    Book newBook;

    printf("\nEnter the Book's Title...\n");
    fflush(stdin);
    gets(theTitle);

    printf("\nEnter the Author's Name...\n");
    gets(theAuthor);

    printf("\nEnter Year\n");
    scanf(" %d",&theYear);

    strcpy(newBook.Title,theTitle);
    strcpy(newBook.Author,theAuthor);
    newBook.Year=theYear;
    newBook.isOnLoan=false;

    int catalogLocation = addBook(newBook);
    SetColor(0);
    printf("\nNew Book Created:\n");
    printBookByLocation(catalogLocation);
    system("pause");

}
//See:https://stackoverflow.com/questions/29574849/how-to-change-text-color-and-console-color-in-codeblocks
void ClearConsoleToColors(int ForgC, int BackC)
{
    WORD wColor = ((BackC & 0x0F) << 4) + (ForgC & 0x0F);
               //Get the handle to the current output buffer...
    HANDLE hStdOut = GetStdHandle(STD_OUTPUT_HANDLE);
                     //This is used to reset the carat/cursor to the top left.
    COORD coord = {0, 0};
                  //A return value... indicating how many chars were written
                    //   not used but we need to capture this since it will be
                      //   written anyway (passing NULL causes an access violation).
    DWORD count;

                               //This is a structure containing all of the console info
                      // it is used here to find the size of the console.
    CONSOLE_SCREEN_BUFFER_INFO csbi;
                 //Here we will set the current color
    SetConsoleTextAttribute(hStdOut, wColor);
    if(GetConsoleScreenBufferInfo(hStdOut, &csbi))
    {
                          //This fills the buffer with a given character (in this case 32=space).
      FillConsoleOutputCharacter(hStdOut, (TCHAR) 32, csbi.dwSize.X * csbi.dwSize.Y, coord, &count);

      FillConsoleOutputAttribute(hStdOut, csbi.wAttributes, csbi.dwSize.X * csbi.dwSize.Y, coord, &count );
                          //This will set our cursor position for the next print statement.
      SetConsoleCursorPosition(hStdOut, coord);
    }
 return;
}

//See:https://stackoverflow.com/questions/29574849/how-to-change-text-color-and-console-color-in-codeblocks
void SetColor(int ForgC)
{
     WORD wColor;
     //This handle is needed to get the current background attribute

     HANDLE hStdOut = GetStdHandle(STD_OUTPUT_HANDLE);
     CONSOLE_SCREEN_BUFFER_INFO csbi;
     //csbi is used for wAttributes word

     if(GetConsoleScreenBufferInfo(hStdOut, &csbi))
     {
          //To mask out all but the background attribute, and to add the color
          wColor = (csbi.wAttributes & 0xF0) + (ForgC & 0x0F);
          SetConsoleTextAttribute(hStdOut, wColor);
     }
     return;
}

© 2020  Vedesh Kungebeharry. All rights reserved.

Swap Two Integers

vkungeLeave a comment

A student reproduced a programming question for me today:

Write a program which accepts 2 integers separated by a space. If the first integer is less than the second integer, output a message stating this fact e.g “The first number is smaller”, else swap the values of both variables which contain the integers respectively.

Before the program exits, print both integers respectively.

Analysis

A flowchart for the solution is shown below. Note that, input is obtained on separate lines, a limitation of the software used to create the chart, flowgorithm:

Swap - Main

Solution 1

Below is a suggested solution written in pascal code:

Swapping 2 variables

Copy-able pascal code here:

program swap;
uses crt;
var
num1,num2,temp:integer;

begin

writeln(‘Please enter 2 unequal integers separated by a space…’) ;
//read data separated by a space
readln (num1,num2);

if (num1>num2) then //we swap the numbers using a tempoary varible
begin
temp:=num1;
num1:=num2;
num2:=temp;
end //notice that there is no semicolon on this line.
else//print message
writeln(‘num1 is less than num2’);

writeln();
writeln(num1,’ ‘,num2) ;

writeln(‘Press any key to exit…’);
readkey;
end.

Solution 2

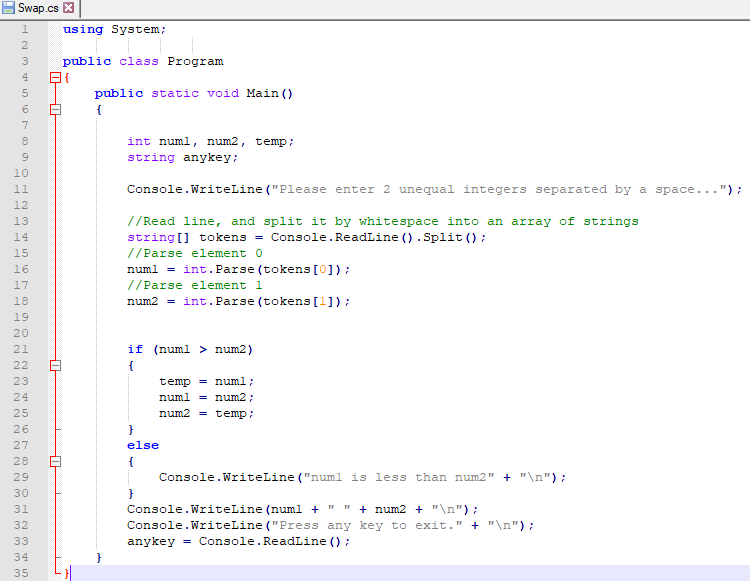

Below is a suggested solution written in c# code (generated by flowgorithm and edited to accept input of the two integers on one line):

Swap - C# Code

Copy-able c# code here:

using System;

public class Program
{
public static void Main()
{

int num1, num2, temp;
string anykey;

Console.WriteLine(“Please enter 2 unequal integers separated by a space…”);

//Read line, and split it by whitespace into an array of strings
string[] tokens = Console.ReadLine().Split();
//Parse element 0
num1 = int.Parse(tokens[0]);
//Parse element 1
num2 = int.Parse(tokens[1]);

if (num1 > num2)
{
temp = num1;
num1 = num2;
num2 = temp;
}
else
{
Console.WriteLine(“num1 is less than num2” + “\n”);
}
Console.WriteLine(num1 + ” ” + num2 + “\n”);
Console.WriteLine(“Press any key to exit.” + “\n”);
anykey = Console.ReadLine();
}
}
© 2018 Vedesh Kungebeharry. All rights reserved

Getting Set Up For C# Programming

vkungeLeave a comment

C# programming  can be achieved by using Microsoft Visual Studio.  Below are some steps for setup:

  1. Visit https://www.visualstudio.com/downloads/
  2. Download and run the installer for Visual Studio Community Edition :

VS 01

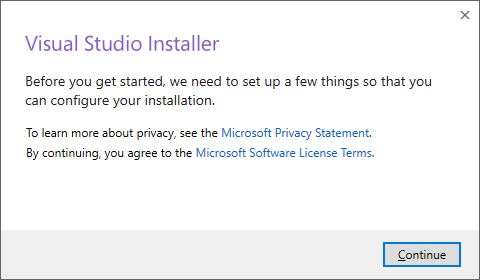

3. The installer configures the installation…….

VS 02

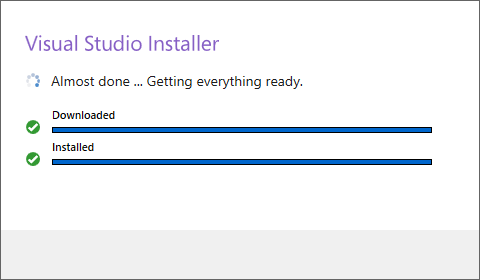

…..and sets itself up for the main installation of visual studio.

VS 03

4. Next, you will be faced with installation options.  For now, select all options as shown below, and click on install:

VS 04

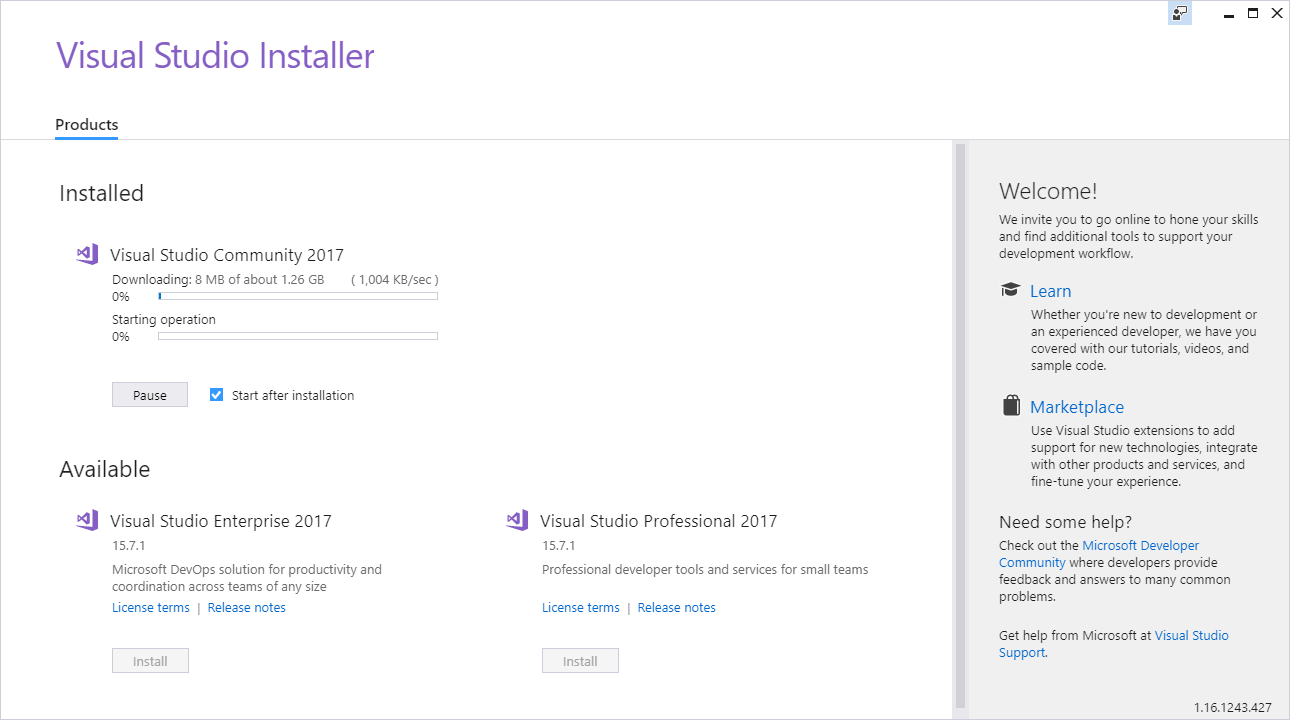

Visual studio will now be downloaded and installed.

VS 05

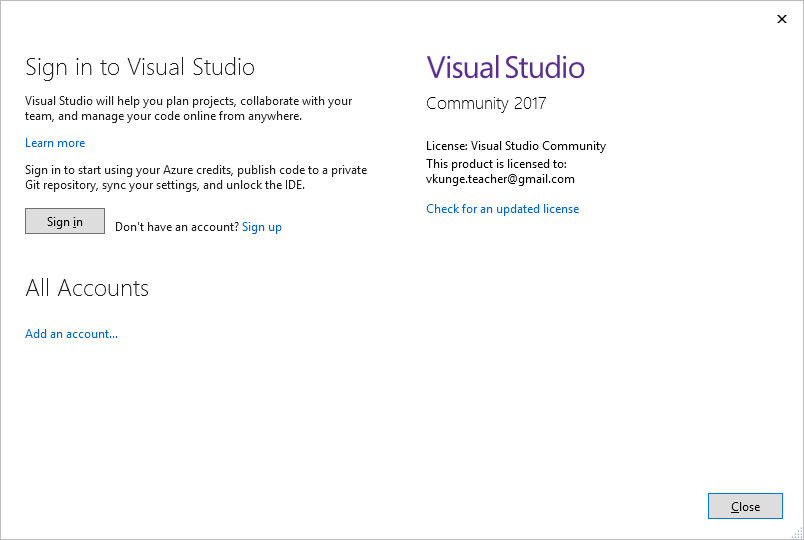

5. After Installation, when you run Visual Studio, you will be faced with a login screen:
VS 06



If you have an existing Microsoft account you can sign in.

Otherwise, you will need to create one then login.

From here on, you can start using visual studio 🙂



© 2018  Vedesh Kungebeharry. All rights reserved
