The Ripple Counter Explained (Animation)

November 21, 2019November 21, 2019 vkungeLeave a comment

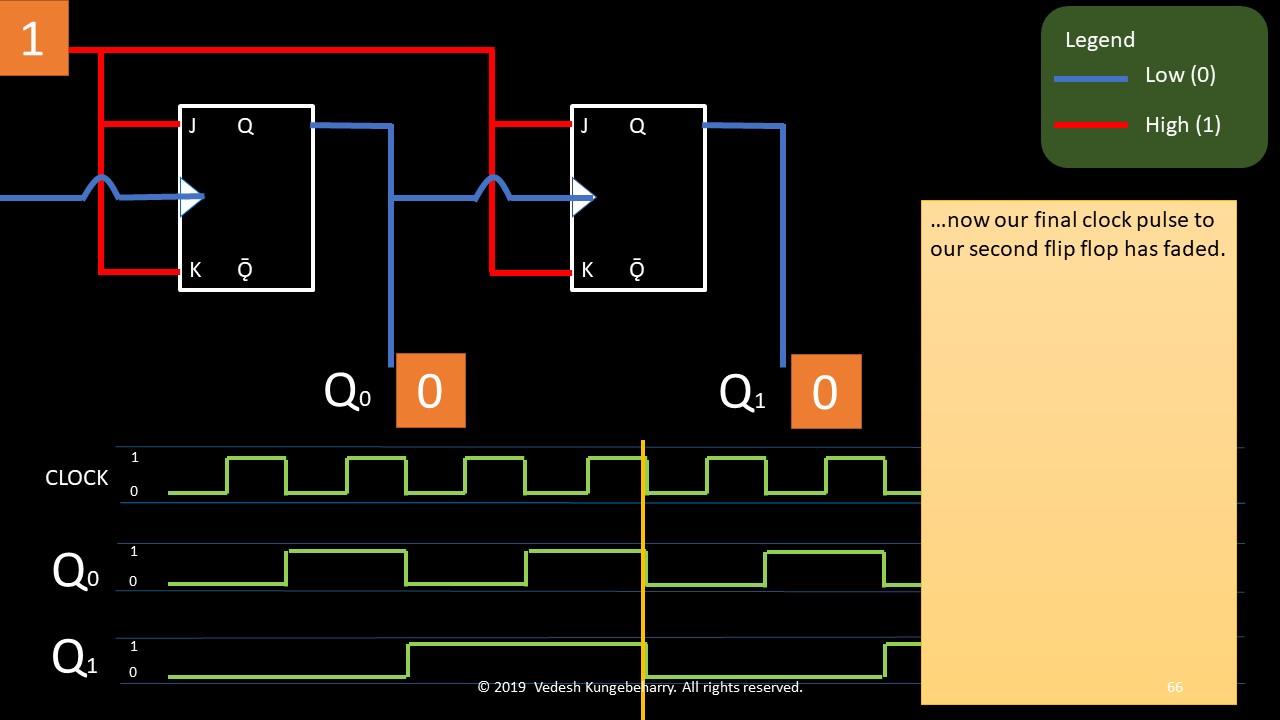

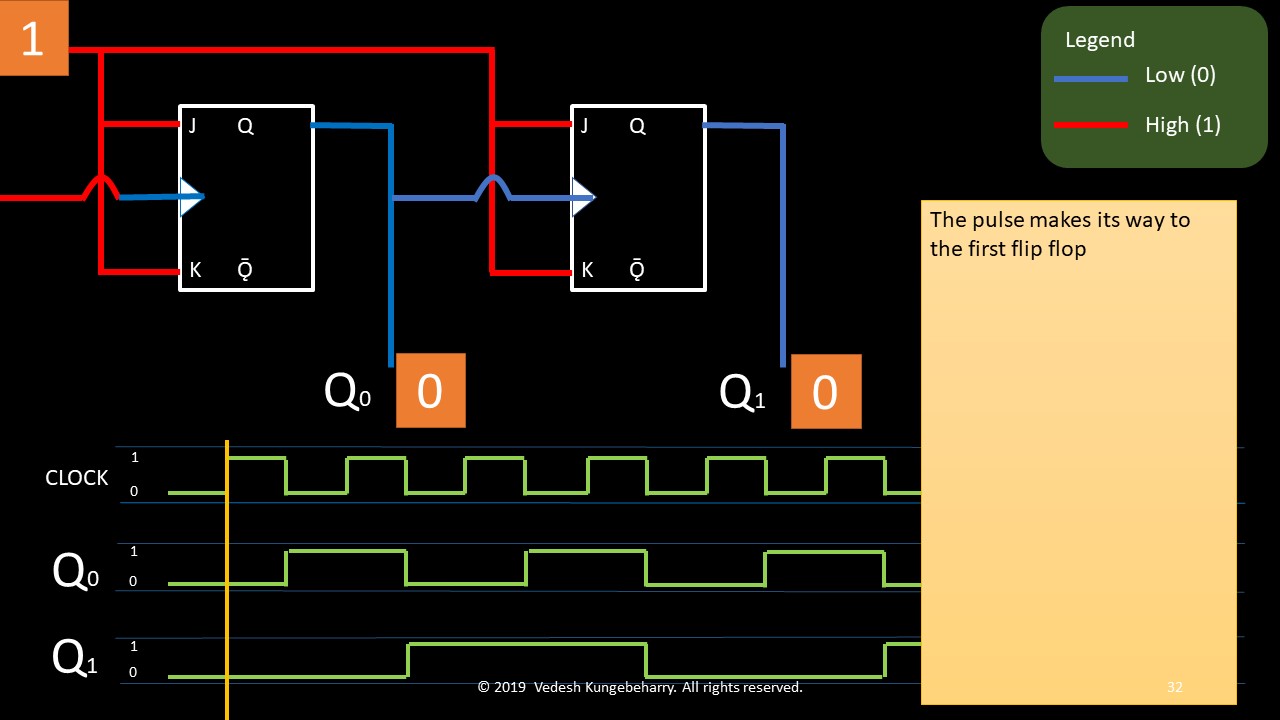

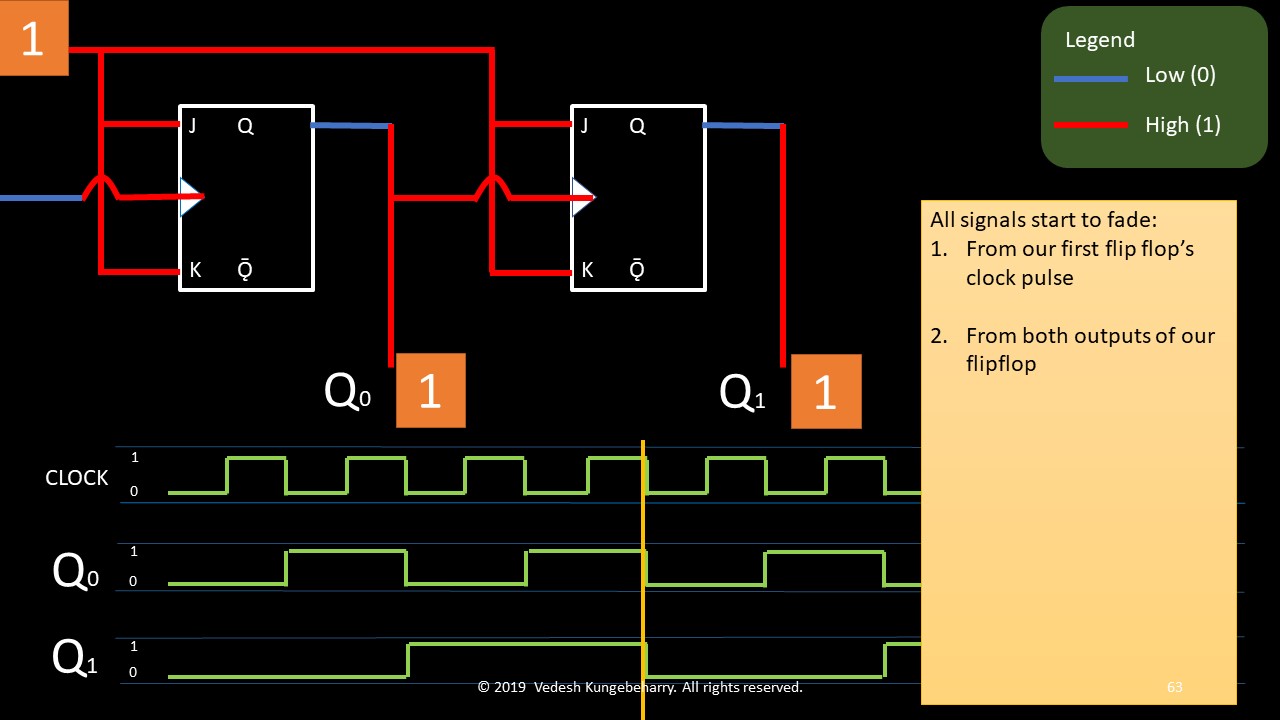

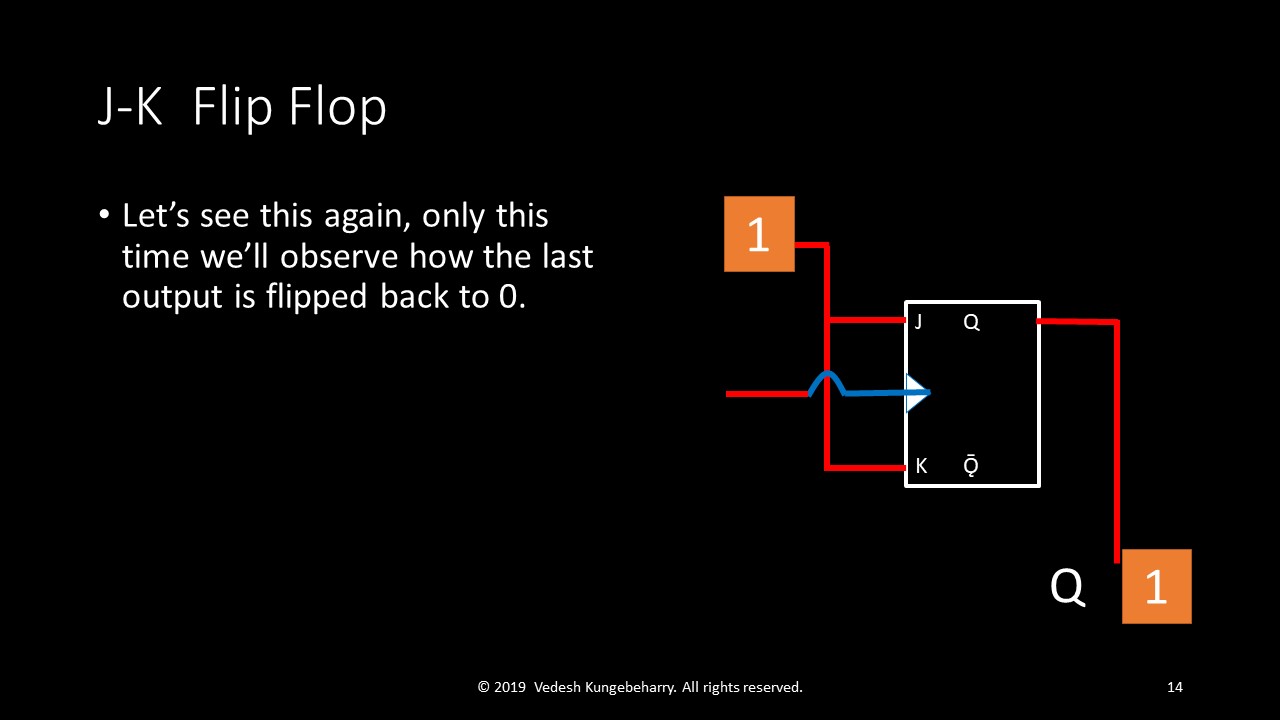

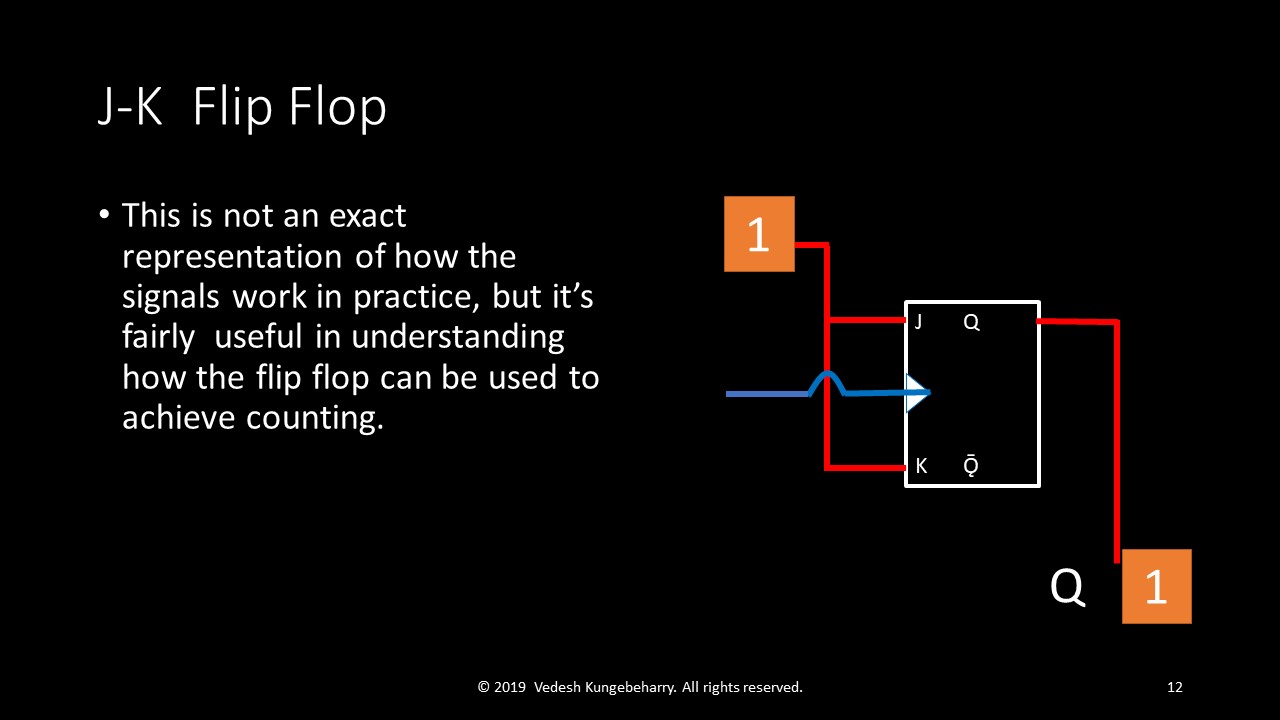

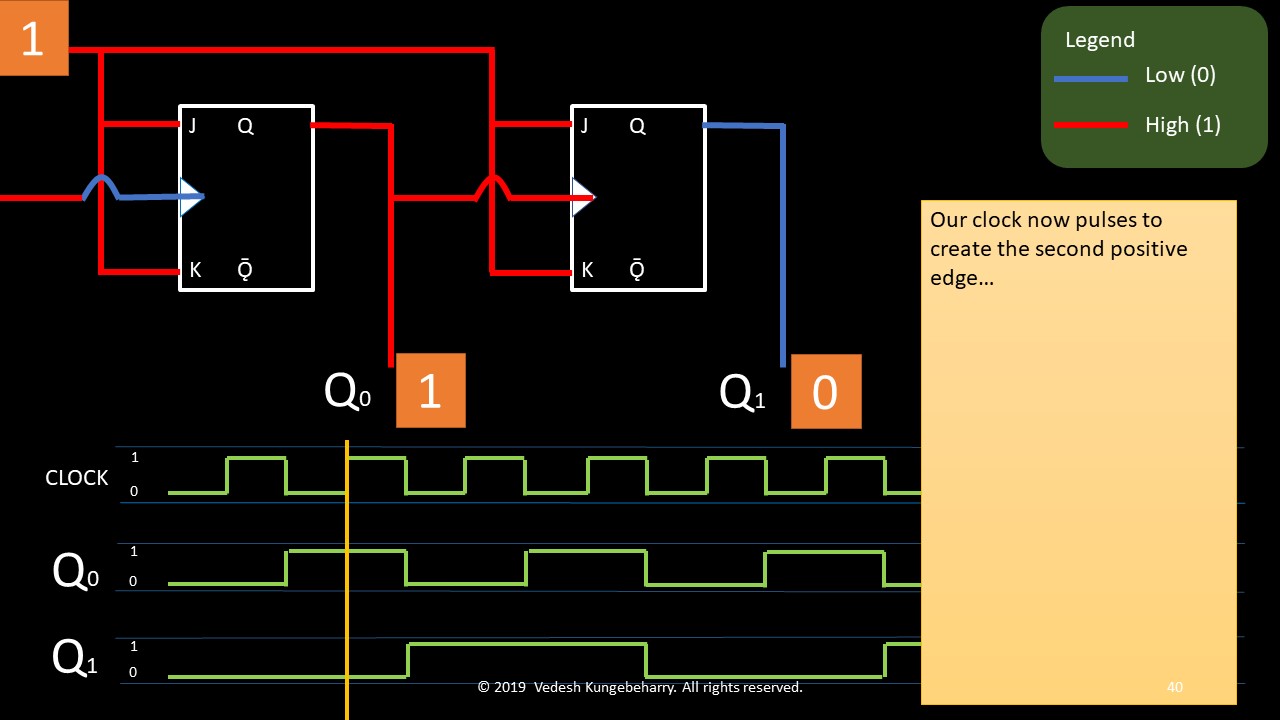

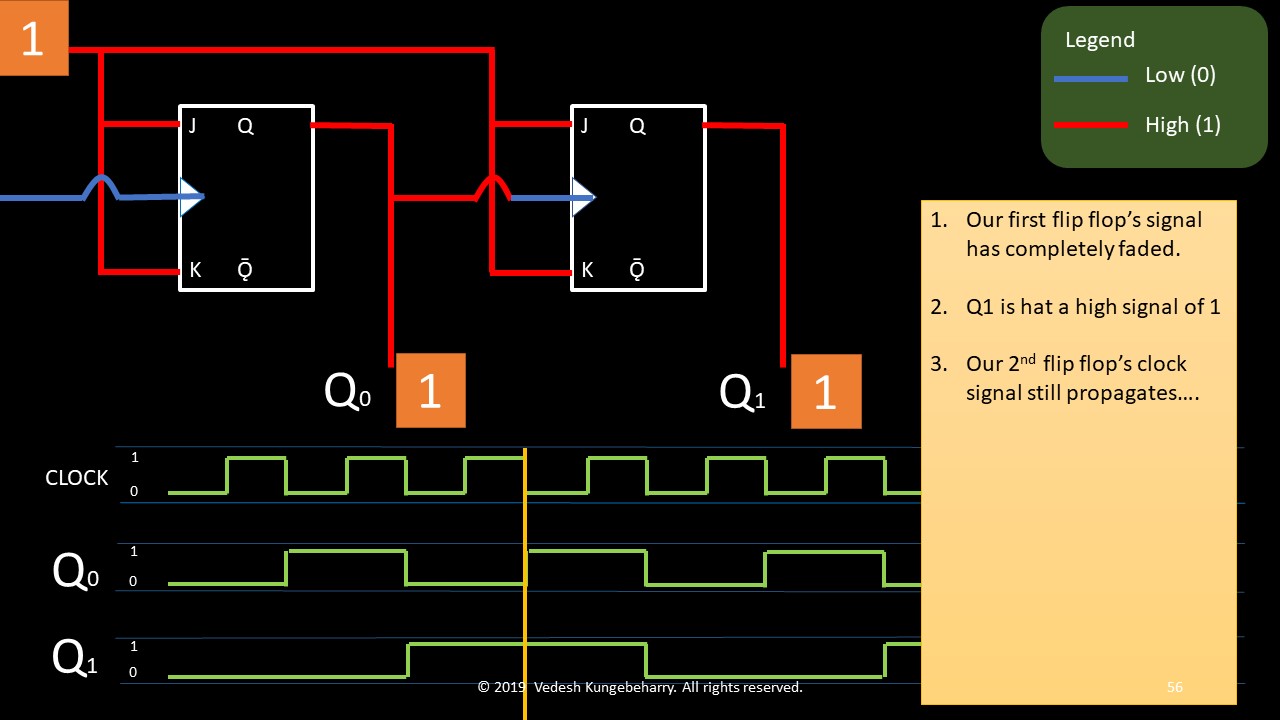

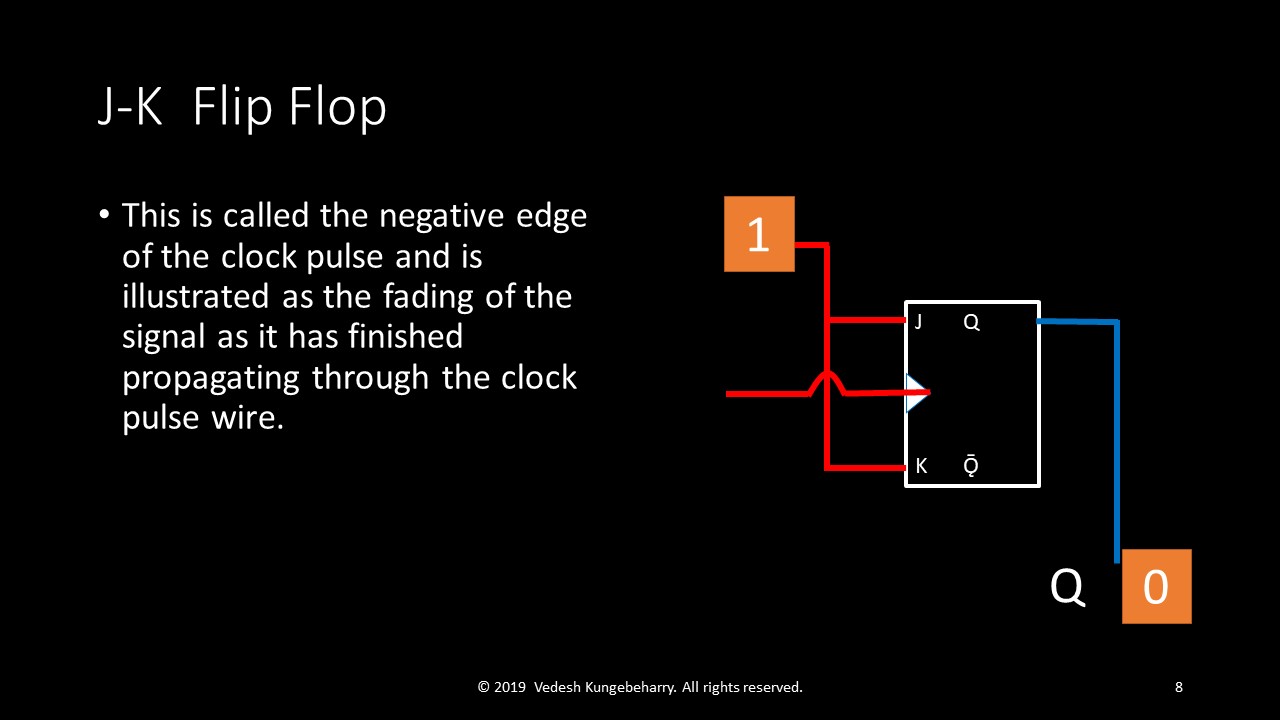

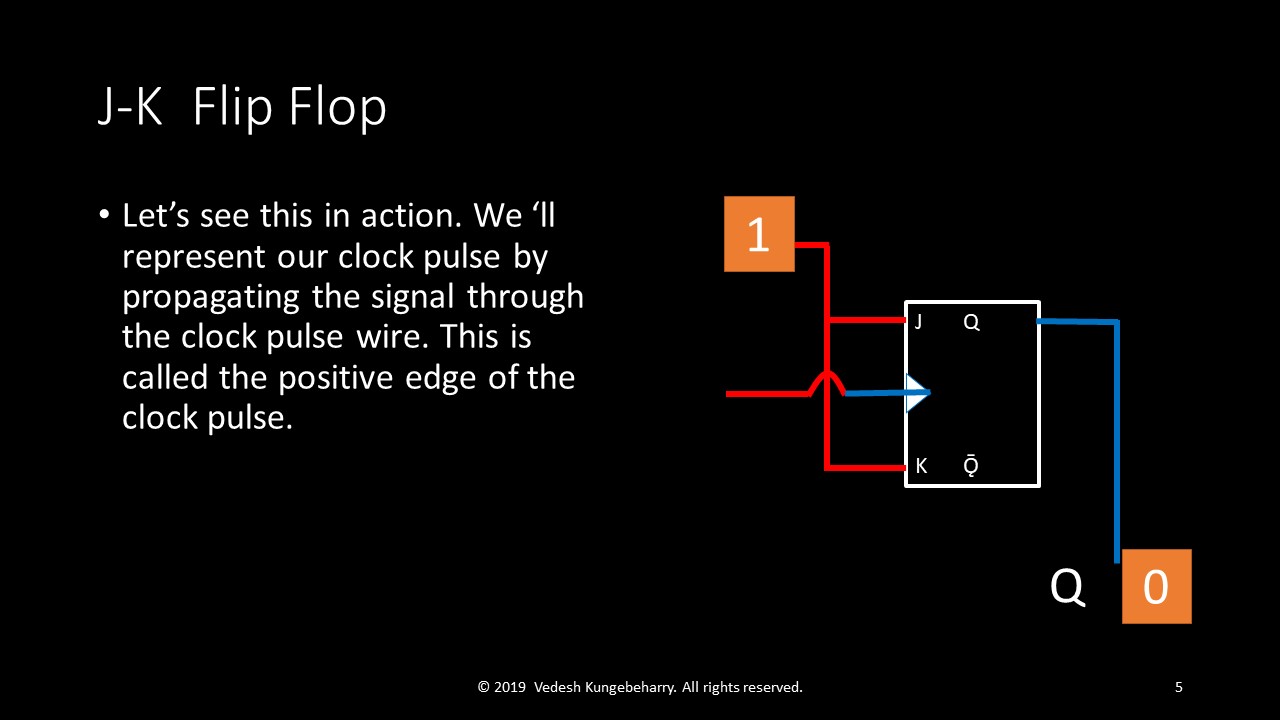

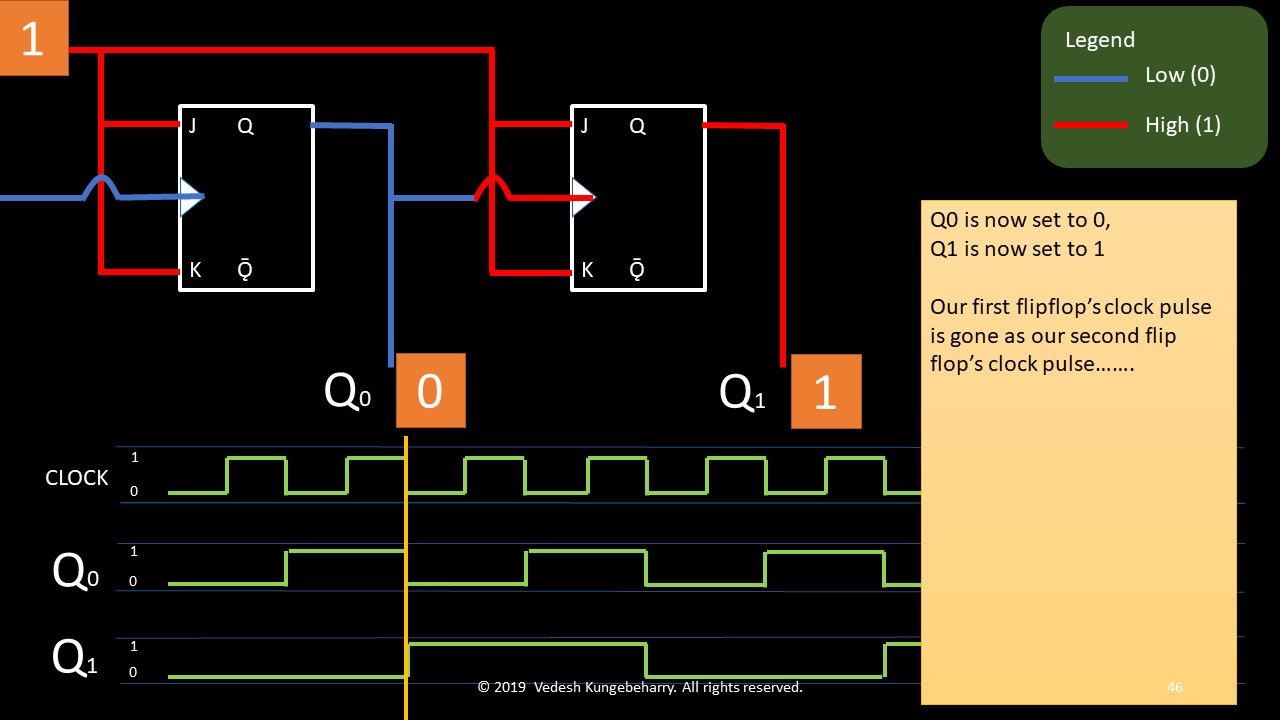

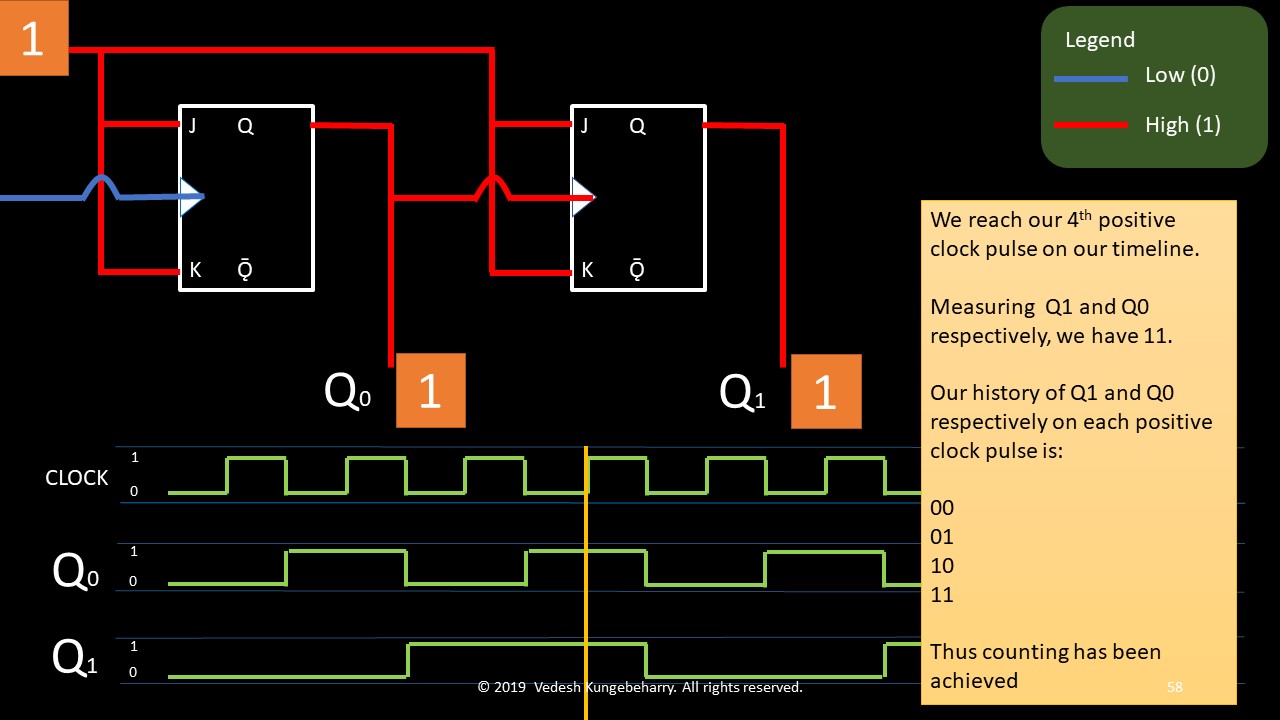

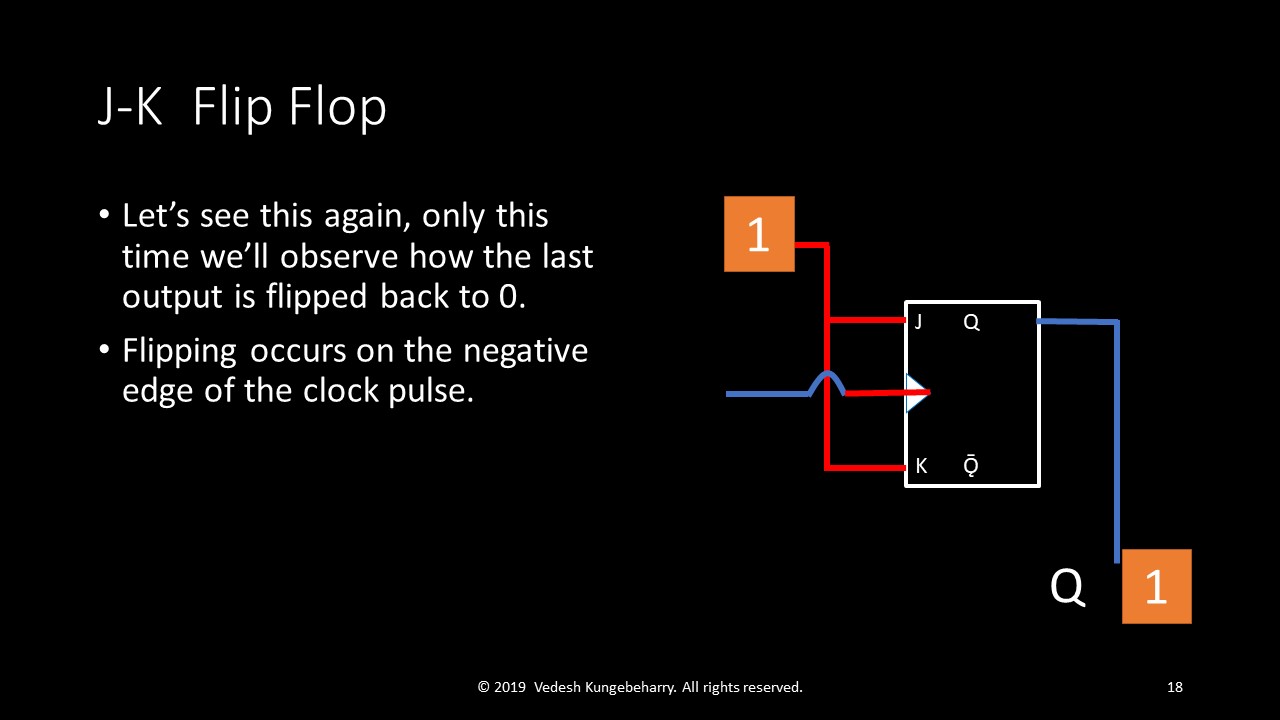

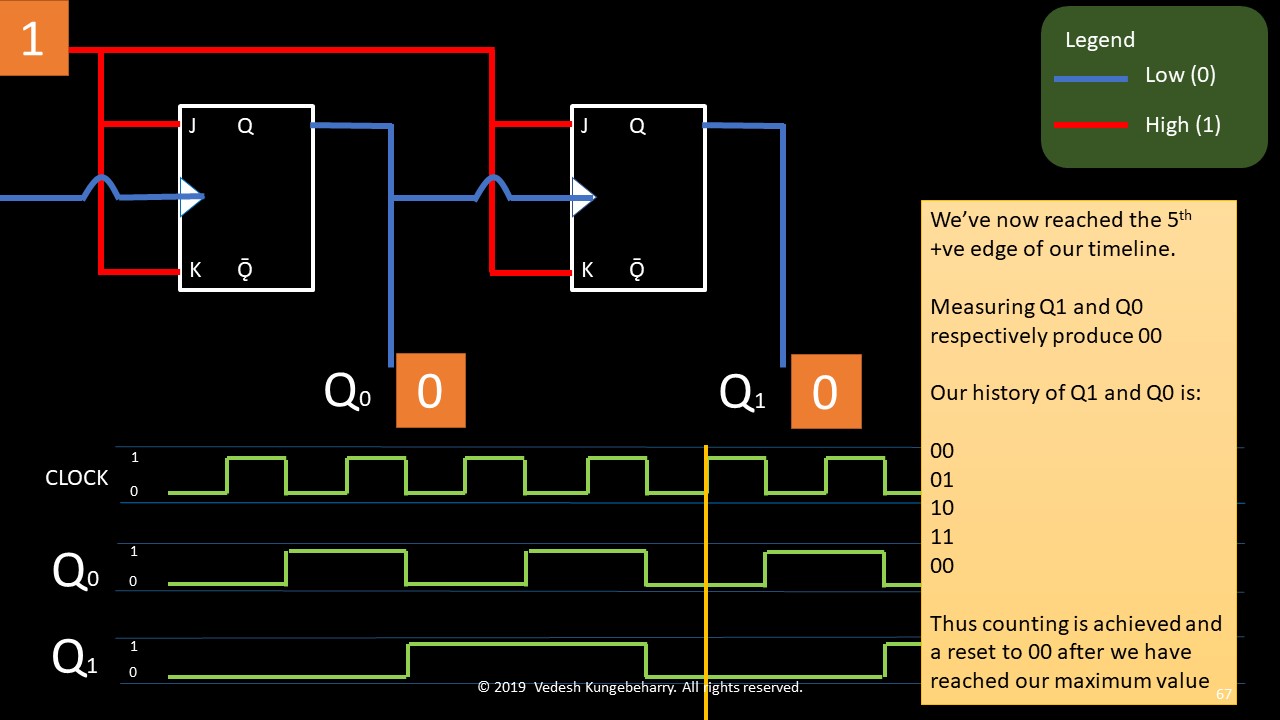

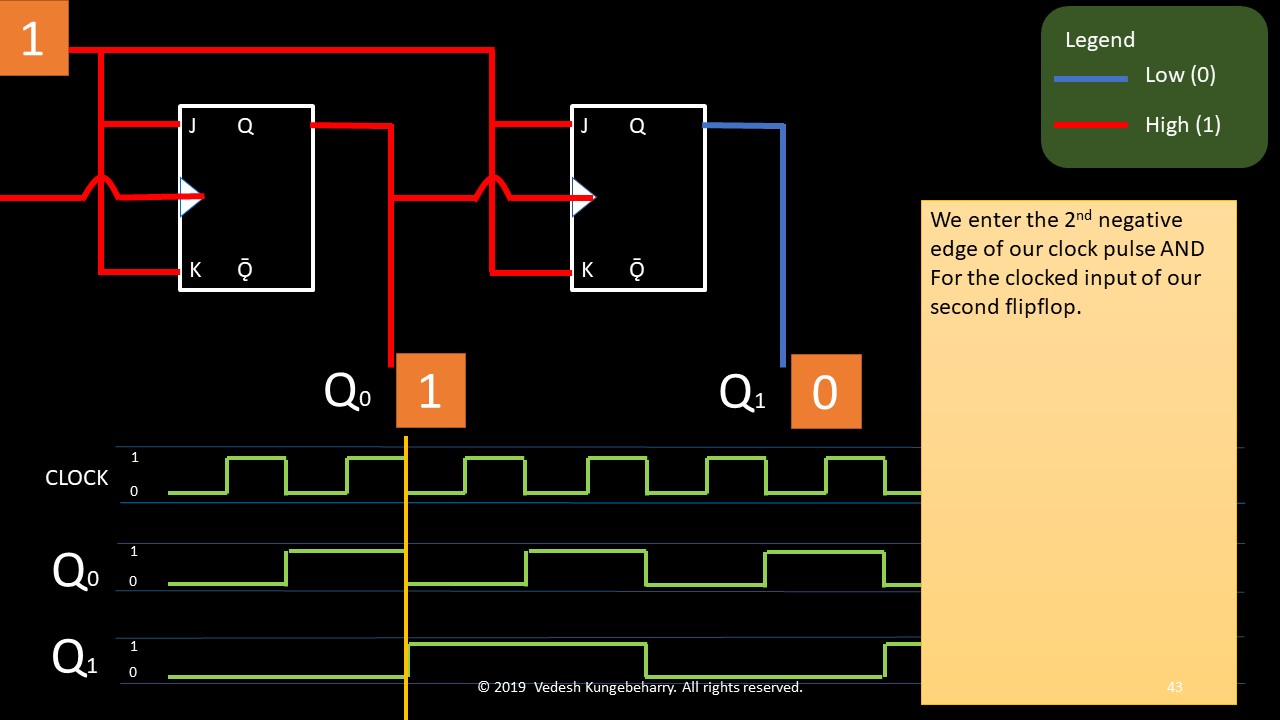

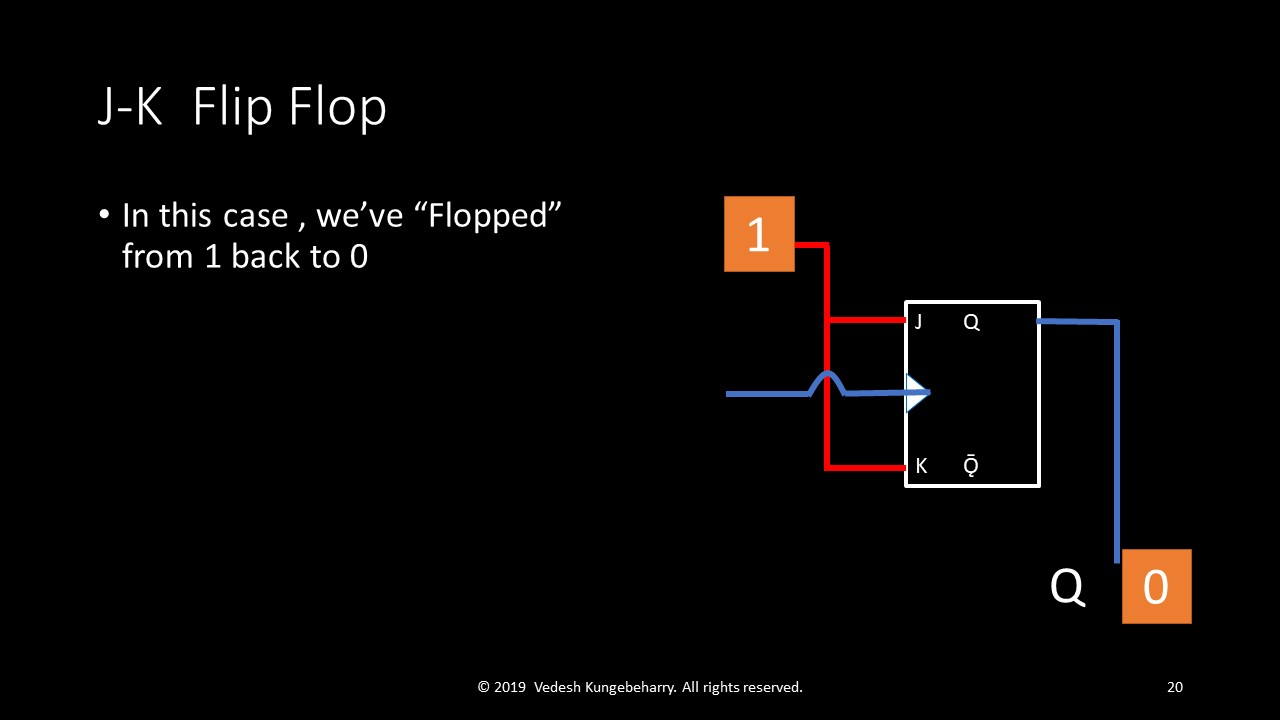

The Slideshow below shows how clocked JK Flipflops can be used to achieve counting.

© 2019 Vedesh Kungebeharry. All rights reserved.
